A few months ago Dutch newspaper de Volkskrant published a very interesting article describing how, according to secret Iranian documents obtained by the newspaper, the Islamic Revolutionary Guard Corps (IRGC) was attempting to procure encrypted, non-western satellite phones due to increasing distrust of Iranian communications infrastructure in the light of the Iran-Israel war.
In part 1 of this series, we took a first look at the GMR-1 3G based Tiantong system. In part 2 we will delive into general satphone SIGINT capabilities, supply chain security, and some security aspects of the latest Huawei Mate Tiantong-enabled smartphones.

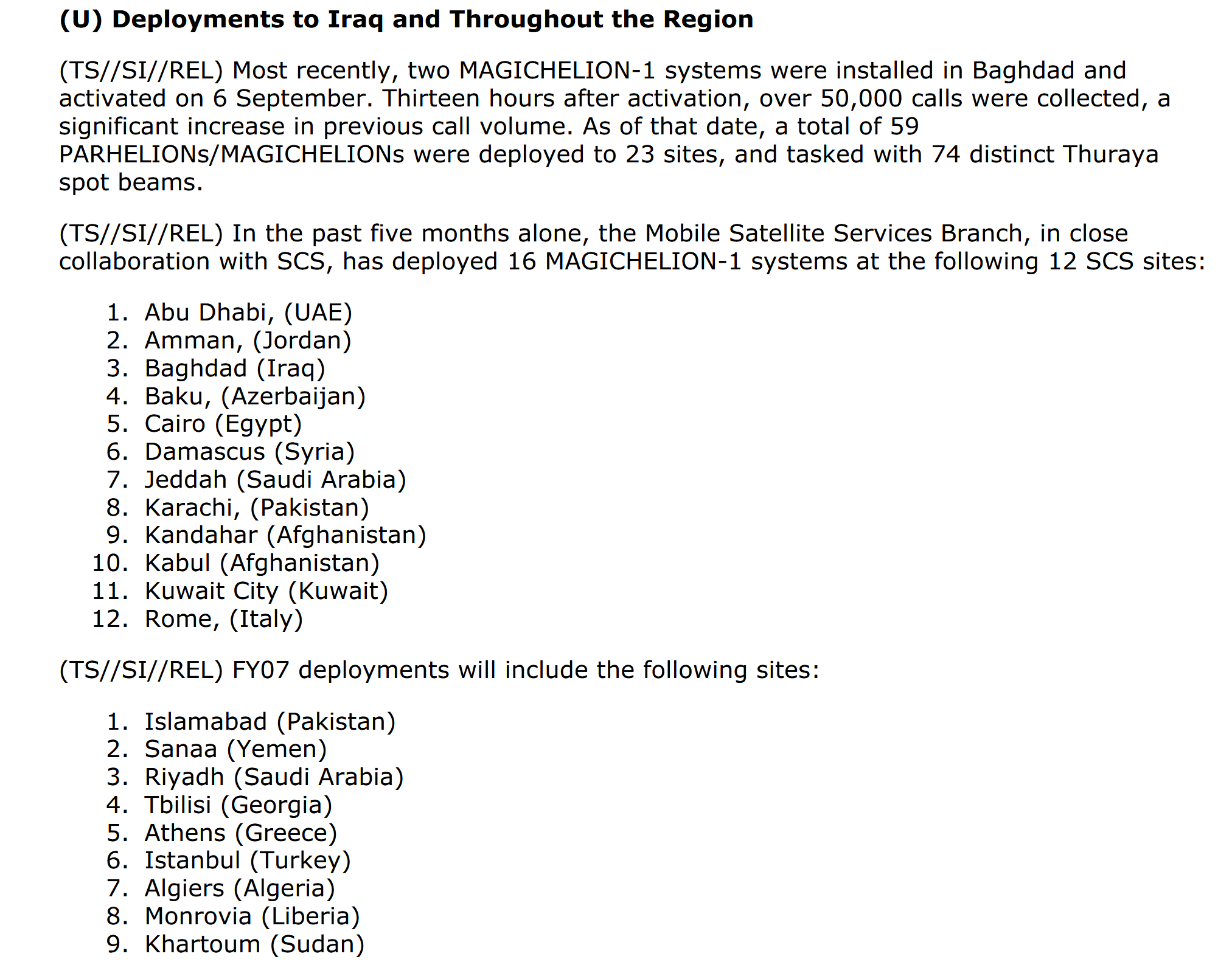

Given their prominence in matters of national security, it is unsurprising there are many (commercialized) SIGINT capabilities for satphones available. In fact according to an internal SIDToday publication by the NSA’s Signals Intelligence Directorate (SID) from 2006, contained in the Snowden leaks, GMR-based Thuraya was considered one of the US intelligence community’s top priorities. In addition to satellite-based monitoring capabilities as exemplified by the MENTOR 4 SIGINT satellite closely following the Thuraya 2 satellite, significant investments were made in ground-based collection capabilities using the NSA’s MAGICHELION and PARHELION systems.

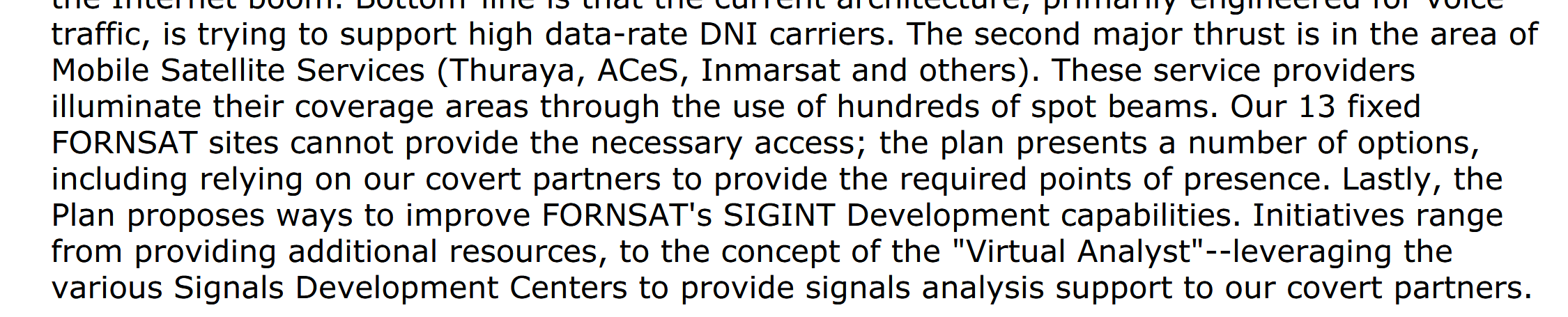

According to a leaked SIDToday publication from 2003, the NSA did not have the desired Foreign Satellite interception (FORNSAT) coverage at the time. In these and other publications, a picture emerges of rapidly expanding collection sites numbering 9 in 2002 to 12 (+40 regional) sites in 2012 in addition to collection performed through 2nd party partners via the STATEROOM program.
Regional collection happens through Special Collection Service (SCS) units based at embassies and consulates as neatly summarized by Electrospaces. These units not only service interception posts at the embassies themselves but also roll out covert surveillance infrastructure throughout a target country.
While no current publications seem to mention Tiantong-1, there is much information available about SIGINT capabilities for GMR-based SATCOM systems such as Thuraya and Inmarsat. Such information can be obtained from public brochures by vendors such as Stratign, Shoghi, and Pegasus Intelligence as well as product brochures from vendors such as L-3 TRL, Rheinmetall, Verint, and Rhode & Schwarz leaked as part of the Wikileaks Spy Files. All of these systems seem to have fairly identical capabilities, architectures, and challenges.
They offer passive interception capabilities allowing for:

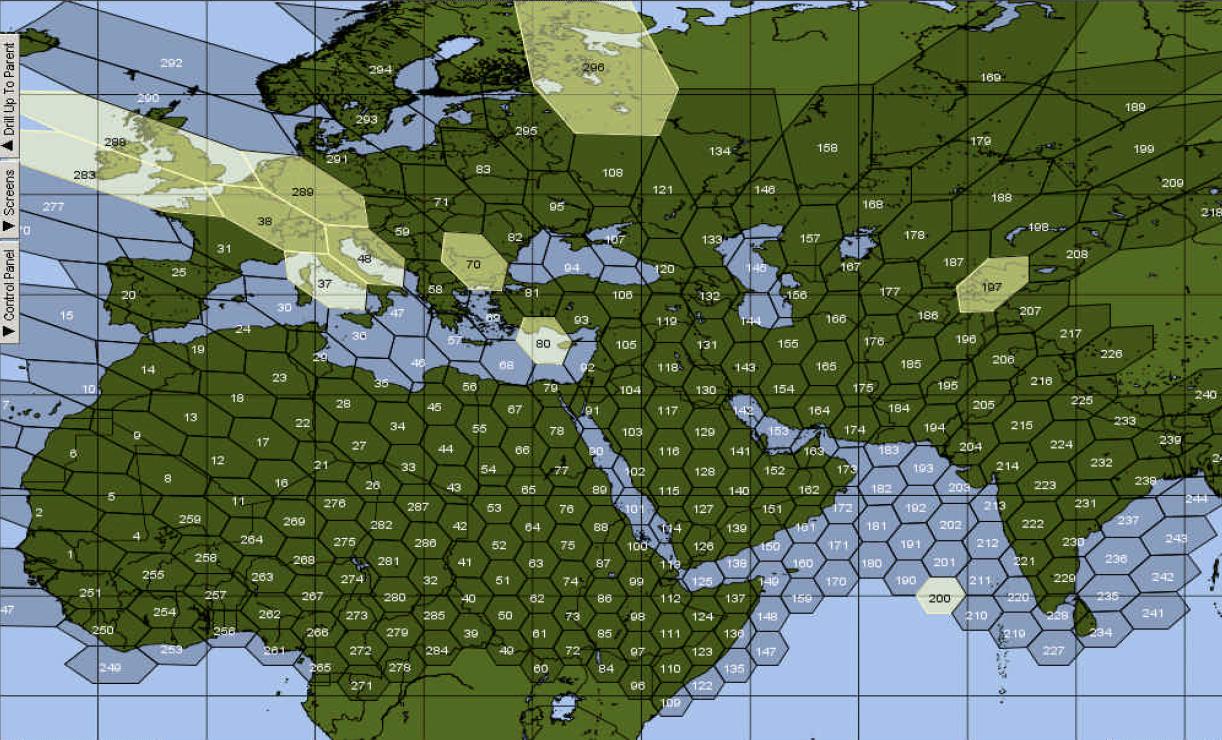

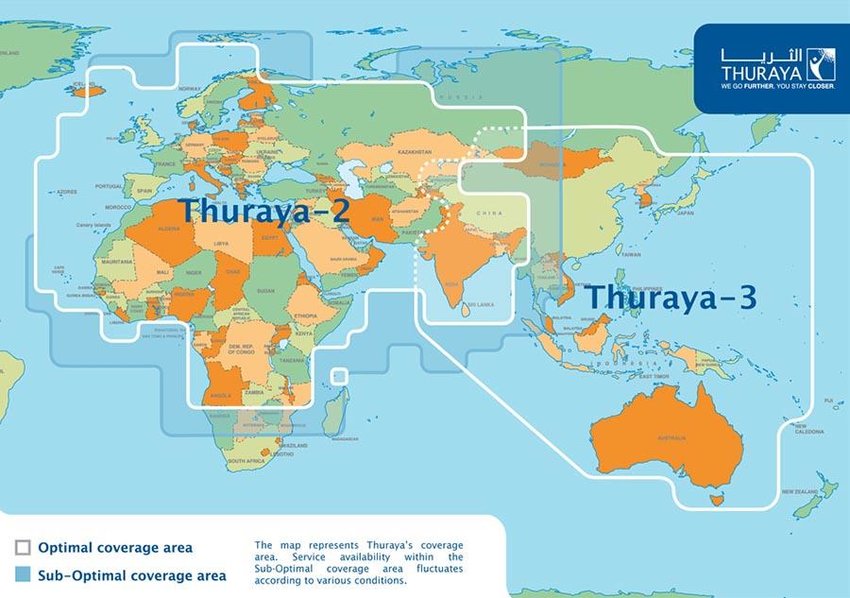

Regardless of the GMR version or frequency bands in use, the general operating principle comes down to satellites covering a large geographical area in smaller, focused areas of coverage referred to as spotbeams. For example, the GMR-1 based Thuraya system consists of several satellites each covering a different geographical area. These areas are then subdivided into dozens of spotbeams each covering hundreds of kilometers.

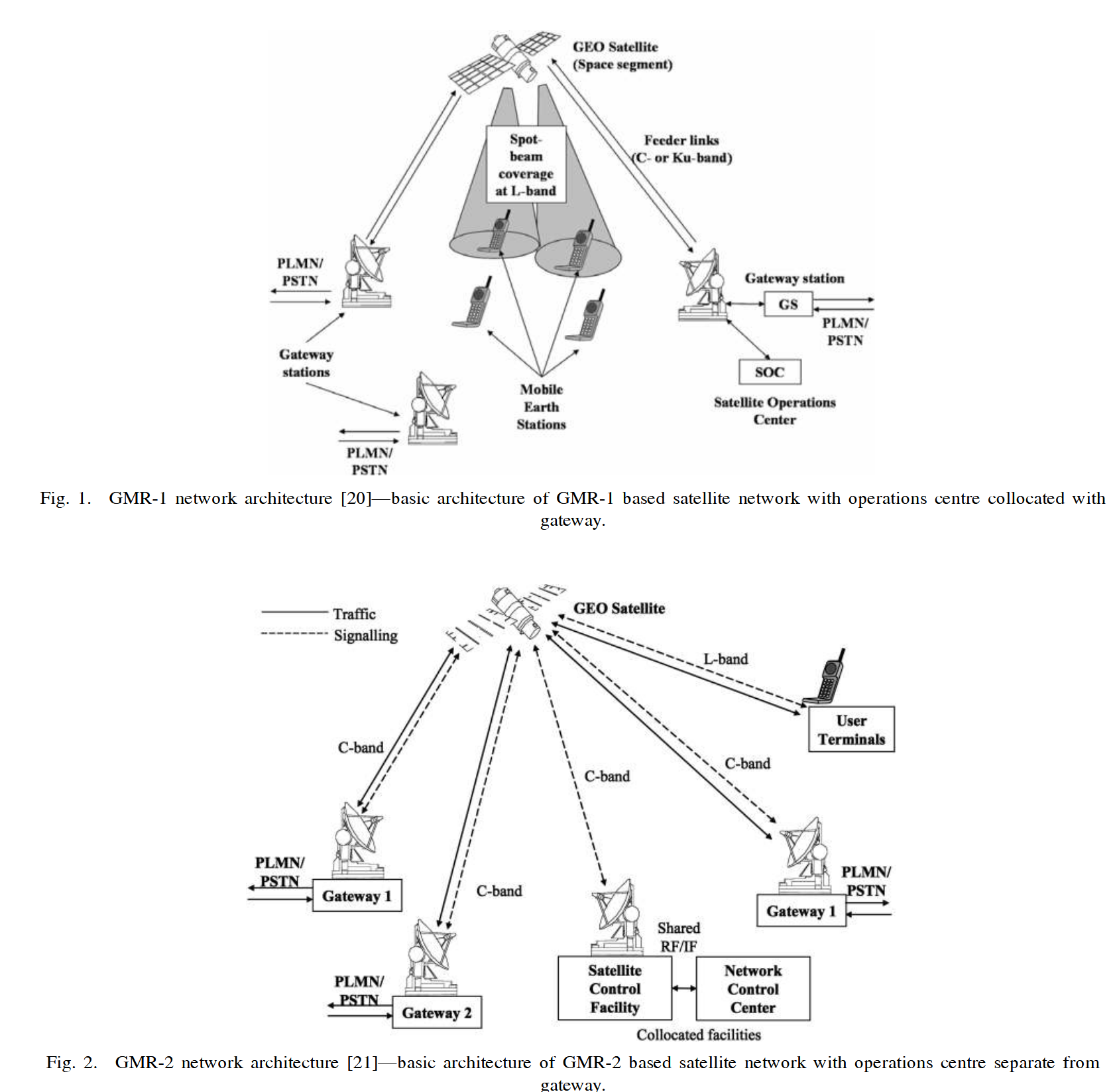

As illustrated below, communications within a single spotbeam take place in the L-band while feeder link communications between gateway stations and satellites take place in C-/Ku-bands in the regional beam.
Two-way (duplex) traffic interception is only possible in a limited number of spot beams (depending on distance between spotbeams with similar signal characteristics such as frequencies and timeslots) centered around a monitoring system. As outlined in leaked documents, monitoring and intercepting satphone communications presents several challenges related to synchronization (such as differing delays when signals are captured at different geographical points), missing directional traffic (forward/return links), and complexities in mapping captures from spotbeams to those from regional beams. This typically means all available channels need to be intercepted simultaneously even if one's actual area of interest may be limited.
On the other hand, feeder link communications can be monitored from any location within the satellite’s footprint area. These communications allow for monitoring (but not intercepting) call activity on return links in multiple spotbeams (without requiring spotbeam coverage by a local monitoring system) via received signaling information (which includes geo-location relevant data and caller IDs).
It should be noted that interception capabilities are not merely constrained by satellite system architectural aspects but also by hardware capabilities such as the numbers of frequency channels that can be monitored simultaneously. Such limitations depend limitations of utilized DSP/FPGA technology and rack space for system modules. In addition, export controls tend to restrict capabilities as well such as artificially limiting the number of simultaneously monitorable calls.

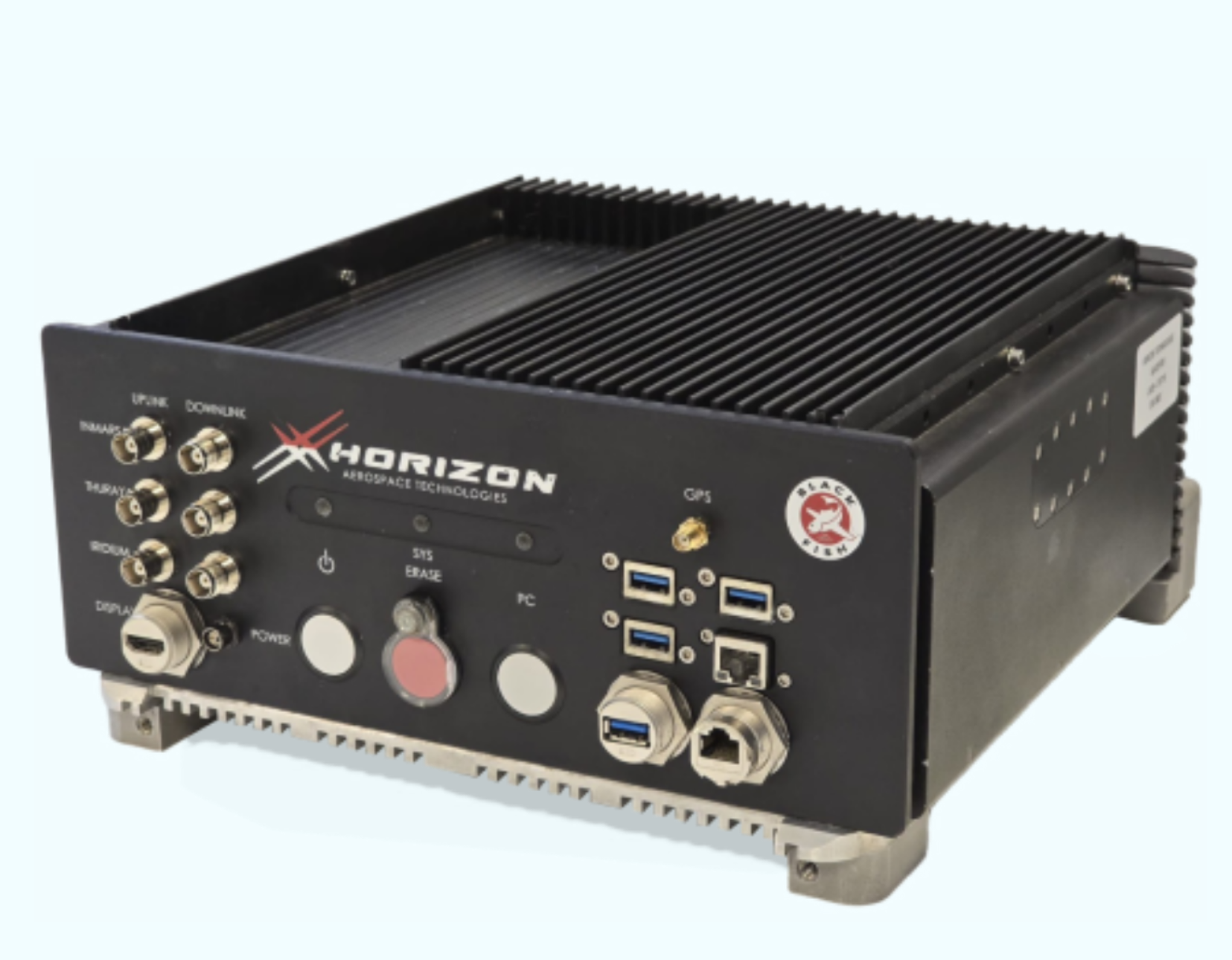

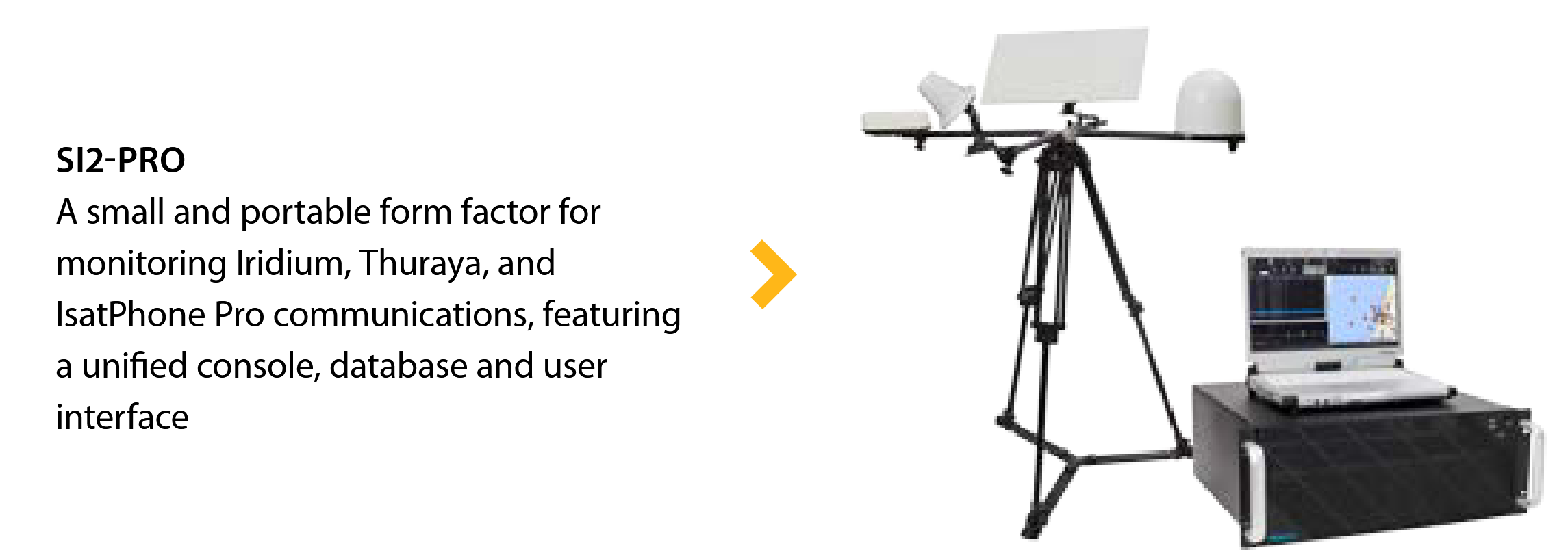

While most of the GMR-1 interception equipment discussed here can likely not be repurposed easily against Tiantong, there is plenty of COTS SDR hardware available these days capable of handling S- and C-Band traffic that could serve as the basis for a TT monitoring solution.
As leaked documents from a Rhode & Schwarz GMR-2 monitoring system show most satphone monitoring systems consist of several elements:
Strategic Monitoring System
These systems, sometimes referred to as central stations, are typically capable of continuous live monitoring and interception of terminals in surrounding cluster of spotbeams and include integrated decryption and analytic capabilities. Such systems are likely based at dedicated SIGINT sites or SCS locations.
Remote Monitoring System
These systems allow for expanding system coverage and full duplex interception capabilities with several additional spotbeams surrounding the remote monitoring system. Remote monitoring systems are typically connected to strategic systems through always-on connections (e.g. PTSN, WAN, or satellite link). Such remote monitoring systems are likely rolled out throughout a country by SCS operators, and likely connect back to the in-country SCS site.
Tactical Monitoring System
Tactical monitoring systems are for use by operational teams requiring real-time intercept of terminals in areas either lacking spotbeam coverage. These systems are typically highly portable and vehicle-mountable and facilitate otherwise hard-to-obtain terminal uplink interception capabilities up to tens of kilometers within line-of-sight. Optimal usage requires site surveys to determine suitable monitoring location and antenna positioning.
Airborne Monitoring System
In addition to the above listed stationary monitoring systems, certain vendors also offer airborne satphone monitoring systems for deployment on manned and unmanned aircraft - essentially offering similar advantages to the tactical monitoring system.
Ever since the NotPetya and SolarWinds incidents supply chain security has been an increasingly hot topic. Worries around (hardware) supply chain security have recently taken on an additional kinetic dimension with the Israeli attacks on pagers and VHF radios operated by Hezbollah in Lebanon.
The Volkskrant article mentions typical operational security measures taken against supply chain threats to the procured Tiantong smartphones such as trying to ensure non-sequential serial numbers and limited batch sizes (no doubt also opting for diversified manufacturers and points of sale).

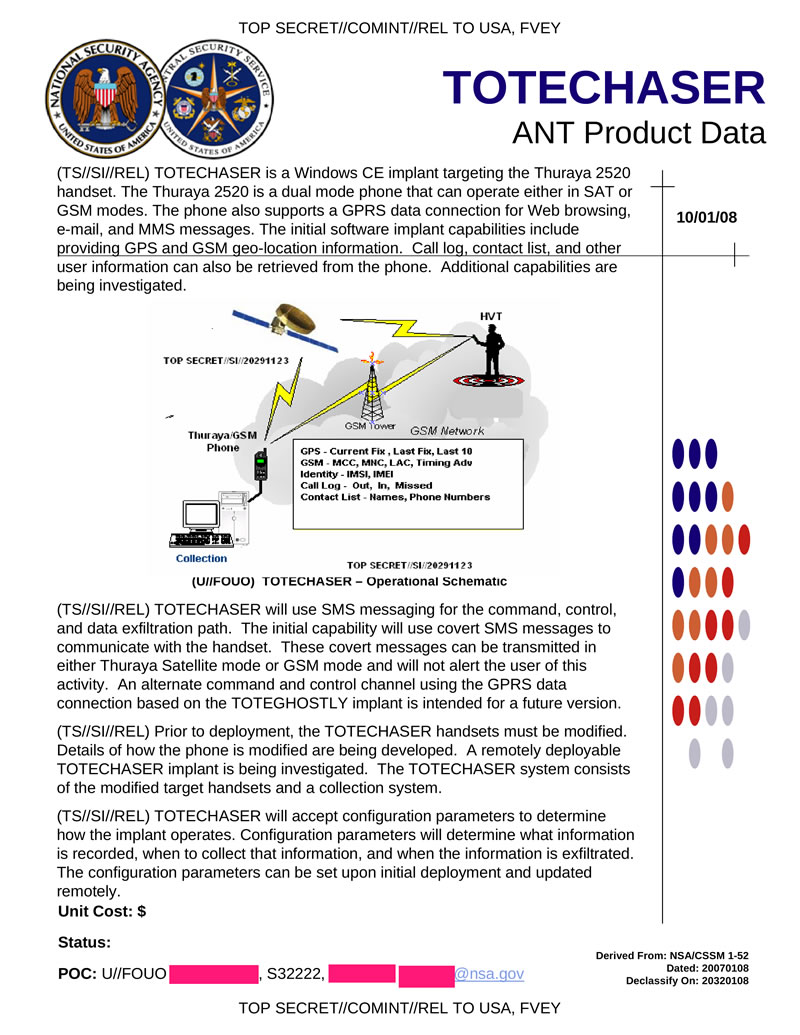

Interestingly, the leaked NSA ANT catalog shows that as far back as 2008-2009 the NSA had developed a software implant named TOTECHASER for the Thuraya 2520 satphone handsets. The implant was described as being deployed through (temporary) physical access to the satphone though remote deployment options (likely via remote exploitation) were being investigated.
Implantation of Tiantong smartphones will have different considerations from purpose-built Thuraya handsets. On the one hand, such smartphones consist of much more COTS hardware and software (Android on ARM with one of a handful of well-understood basebands) for which a sophisticated adversary likely already has capabilities and/or expertise.

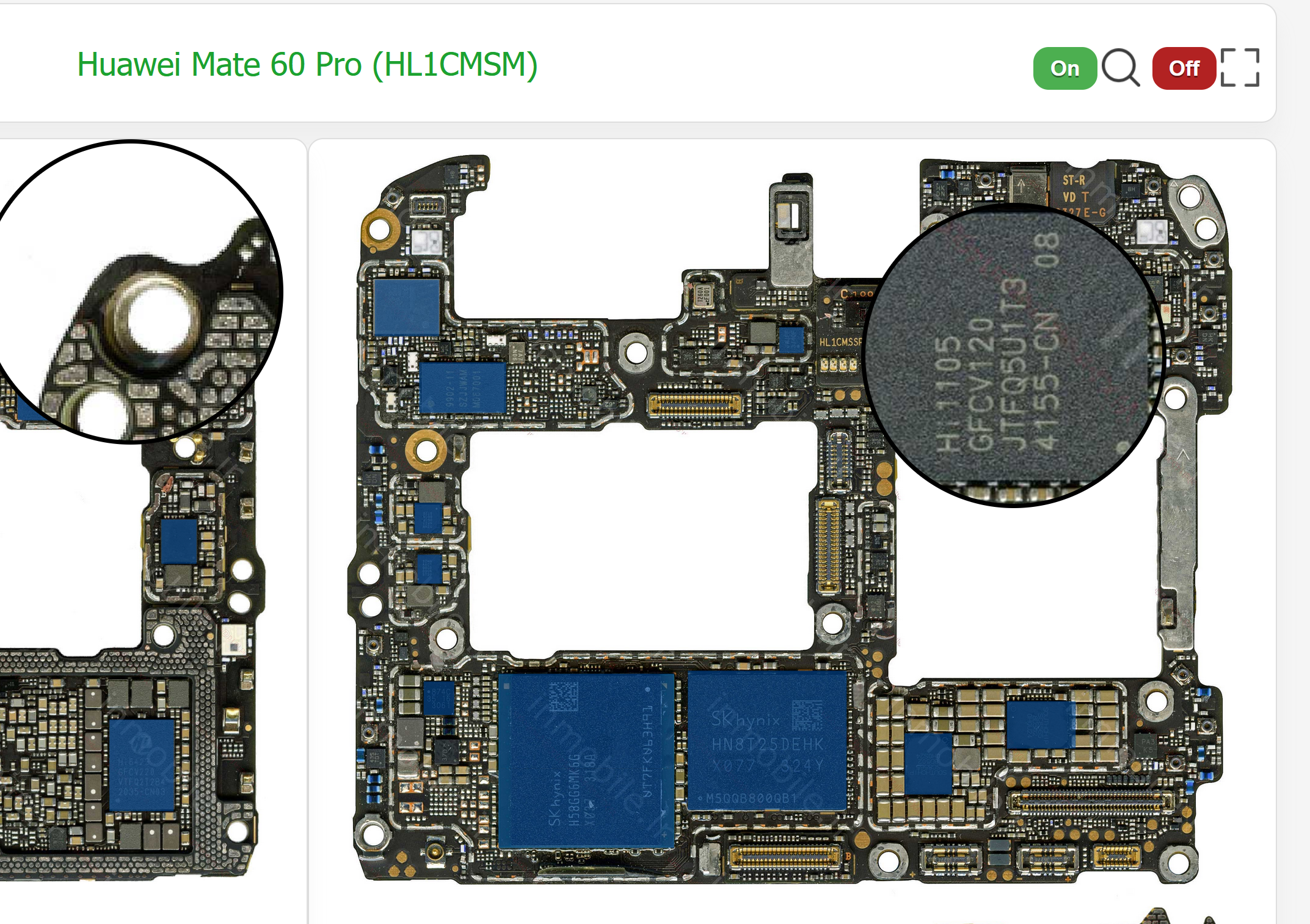

But things are a little different for more modern Huawei smartphones since they increasingly rely on Huawei-proprietary software and hardware. Take the Huawei Mate 60 Pro. Starting with HarmonyOS NEXT, Android has been abandoned as the foundation of HarmonyOS in favor of an OS based on the HongMeng microkernel running its own native app format. The Kirin 9000S SoC has an integrated Balong 5000 baseband, both by Chinese manufacturer HiSilicon. A publicly available teardown lists a component marked HI1105 which matches HiSilicon’s HI11xx IC used as a WiFi chip by other Huawei Mate smartphones. This means an adversary will have to invest a lot of resources to build new exploits and software/hardware implants for these Huawei phones and their OS, baseband, and Wi-Fi chip – all of which are now proprietary to Huawei. Venezuelan president Nicolás Maduro even seems to believe the Huawei Mate X6 gifted to him simply cannot be hacked by US intelligence agencies.
The downside of this approach is that Huawei can no longer benefit so easily from security updates and advances coming in through Western ecosystems and they will increasingly form a self-selecting priority target for Western intelligence agencies (similar to how crimephones self-select for targeting by law enforcement). The opacity of proprietary technology really isn’t much of a barrier either, given Western intelligence’s long-standing targeting of Huawei. In fact, some public security research has already been performed on the HarmonyOS NEXT ecosystem and Balong baseband [1, 2, 3].
While the Tiantong ecosystem doesn’t look like brand new magical fairy dust technology, it might make sense for certain parties worried about Western or under-resourced intelligence agencies surveilling regular cellular networks. It essentially forces such agencies to deploy expensive SIGINT capabilities around the right spot beams and while the U.S. can operate unimpeded at SCS sites in virtually all countries surrounding Iran, this isn’t the case for every SIGINT agency everywhere and likely still requires some more perilous rollout of covert infrastructure inside Iran itself. On top of that if no GPS information can be extracted from Tiantong traffic, geolocation becomes far less granular. Depending on caveats mentioned above, cracking its cryptography might prove a tough challenge as well and remote exploitation and supply chain attacks are also likely to be more laborious (for now). Still, good opsec would need to be observed by disabling cellular capabilities and avoiding co-traveling devices. As such, while hardly revolutionary or foolproof - one can see how adopting Tiantong might make sense for certain actors.
For those interested in advancing their RF security skills, Midnight Blue will be delivering its Red Team SIGINT training at Black Hat Europe 2025.
This practically-oriented course, aimed at red team operators and pentesters, will teach attendees the fundamentals of RF, SDR, and SIGINT before quickly moving on to effective guidance on identifying and decoding unknown signals as well as exploiting common pitfalls in RF security.
Where other SDR trainings tend to focus on enterprise and IoT RF protocols such as 4G/5G, WiFi, RFID, and BT, this training focuses on important but rarely addressed RF technologies such as automotive, aviation, marine, and physical access control RF protocols and mission-critical radio (e.g. TETRA, DMR, P25) used by police, military, private security, and critical infrastructure.
Hands-on exercises such as intercepting and decrypting handheld radio comms and breaking automotive security systems are alternated with thorough overviews of relevant RF protocols and their security posture as well as case studies of real-world RF attacks on railways, water utilities, drones, and police/military radios.
